3DX-RAY ThreatScan- LS1X-Ray Scanning System
ThreatScan- LS1 X-Ray Scanning System |3DX-RAYScanning System
ThreatScan-LS1 is a lightweight. portable. battery powered x-ray scanning system designed in co-operation with first responders and EOD teams to meet the needs of the field operative.
Despite being remarkably lightweight. incredibly thin. portable and battery powered 3DX-RAY 's ThreatScan-LS1 is a powerful large format x-ray scanning system. The large 600mm x 460mm imaging area of the ThreatScan-LS1 enables typical bags and packages to be scanned in one scan. This powerful system penetrates up to 34mm steel at 120kV. producing high quality. sub-millimetre resolution images.
You'll find ThreatScan-LS1 being used for suspect bag and package inspection in locations such as mass transit rail and bus stations. shopping malls. airports. stadia and sports arenas. The system is also used for general security inspection by first responders such as Police. Military and Private and Government Security agencies.
Quick and simple to deploy. the system produces high quality real-time x-ray images for rapid and accurate decision making.
The slim detector panel is positioned behind the target; the generator is placed in front.
The scan is activated from the laptop imaging station.
The large 600mm x 460mm imaging area of the ThreatScan-LS1 enables the operator to scan typical bags and packages in a single scan.
Penetrating up to 34mm steel at 120kV the LS1 produces sub-millimetre resolution images.
A range of sophisticated image processing functions. including materialsdiscrimination. pan. zoom. DeepFocus. 3D Emboss. measurement and annotation. coupled with high quality images enable the operator to interpret the image quickly and accurately.
The software can also communicate the image on screen to a remote command centre and save images in JPEG and other common file formats.
Ideal for use by First Responders. EOD teams. Counter Surveillance. and Customs and Security Operatives
ThreatScan - LS1
- Suspect item inspection
- EOD evaluation
- Customs control
- Vehicle scanning
- Large format panel
ThreatScan - LS1 System Comprises

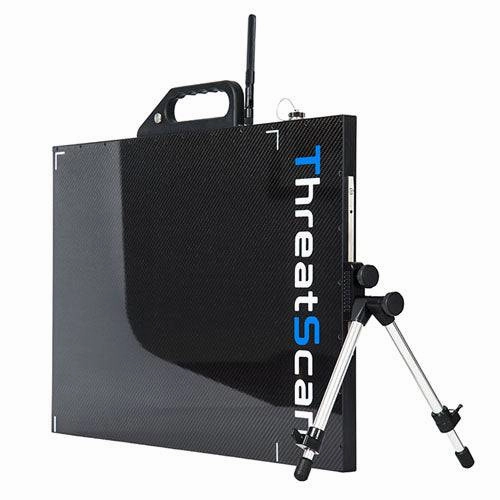

- A large resilient detector panel

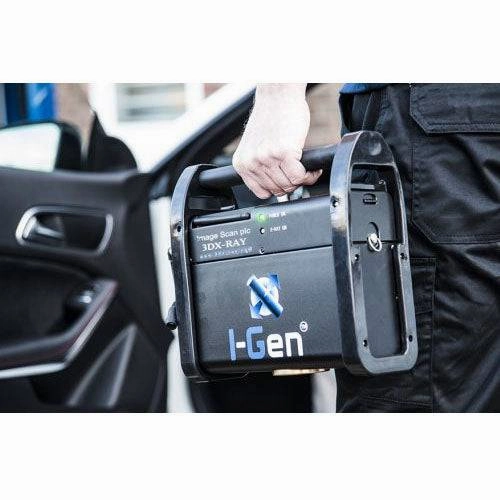

- A portable and robust x-ray generator
- A laptop imaging station
- Batteries and chargers
- Wireless communication

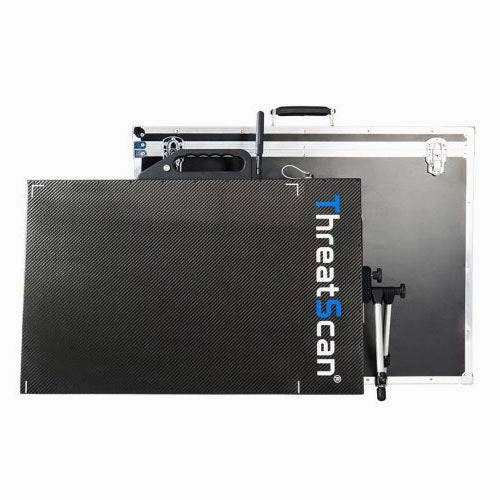

- Carry cases
- ThreatSpect software
ThreatScan - LS1Features:
- High penetration with sub-millimetre resolution
- Large area. resilient detector panel
- Real-time images
- Designed for rapid deployment and ease of use
- Powerful image enhancement and analysis tools
- Intuitive. user-friendly ThreatSpect software
- Scans virtually to the floor (3mm above floor level)
ThreatScan- LS1 3DX-Ray Scanning System Specification:
| X-Ray Detector Panel | |
| Image / detector resolution | 1152 pixels. 40AWG |
| Dynamic range | 65536 (16-bit) |
| Image acquisition / scan speed | 5 sec |
| Detector dimensions | 753mm x 478mm x 25mm (external) (L x H x D) |
| Imaging / scanning area | 600mm x 460mm / scans to 3mm above floor level |
| Weight | 5kg |
| Power | Self contained rechargeable lithium ion battery |
| Communication protocols | Wireless 802.11 a/b/g/n Wired or fibre optic options. TCP/IP ethernet |
| Operating temperature | -10C to 40C / MIL-STD-810F 501.4 and 502.4 |
| Humidity | 0% to 95% non-condensing |
| X-Ray Generator | |
| Type | 1mA constant potential 120kV |
| Power | Self contained rechargeable cells Up to 180 images on one charge (2 hour charge) Mains power option |
| Penetration | 30mm guaranteed. 34mm typical |
| Weight (without battery) | 5.5 kg |
| Size (L x W x H) | 245mm x 180mm x 80mm |
| Communications | |
| Wireless (as standard) | 802.11g / up to 120m range (extendable with repeaters) |
| Fibre optic (option) | 100m. 150m. 200m |
| Ethernet (option) | 25m. 50m |
| Imaging Station | |
| Type | Laptop computer (ruggedised / tablet options available) * PC specification to be confirmed and agreed at order stage |
| Processor | Intel Core i5-4200U. Dual Core |
| Display | 15.6 Full High Definition (1366x768) LED Display with AntiGlare |
| Memory | 4GB 1600MHz DDR3L (RAM) |
| Hard Drive | 500GB Serial ATA Hard Drive |
| Optical Drive | DVD /-RW Media Bay Drive (option) |
| Operating System | English MS Windows |
| Power | Mains and battery |
| Software Features | |
Adjustable x-ray source parameters (kV. mA & time) Standard. Inverted and False Colour images Rotate. Histogram. Pan. Zoom. DeepFocus On-screen Measurement and Annotation (options) Materials Discrimination and 3D Emboss (options) Multi-file format import (option) Multi-touch functionality for tablet based operation (option) | |
| Safety | |
Physical safety interlock plus key switch Audible & visible warning signs CE compliant | |
| Certification & Codes | |
| NATO | Codification NSN 6350-99-464-9827 |
