Description

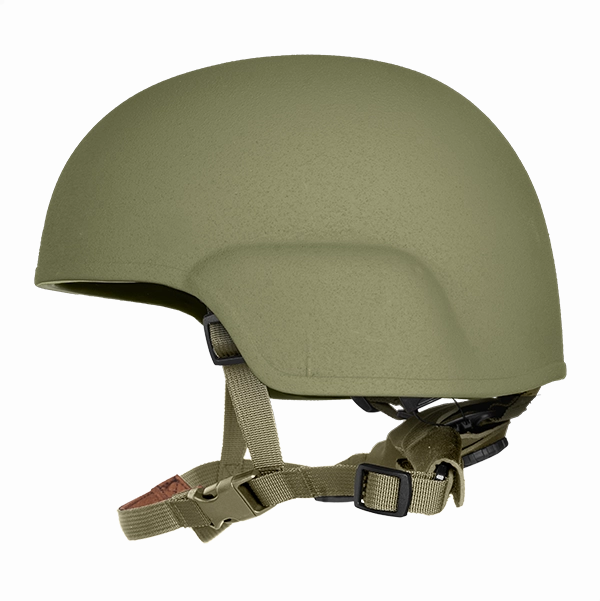

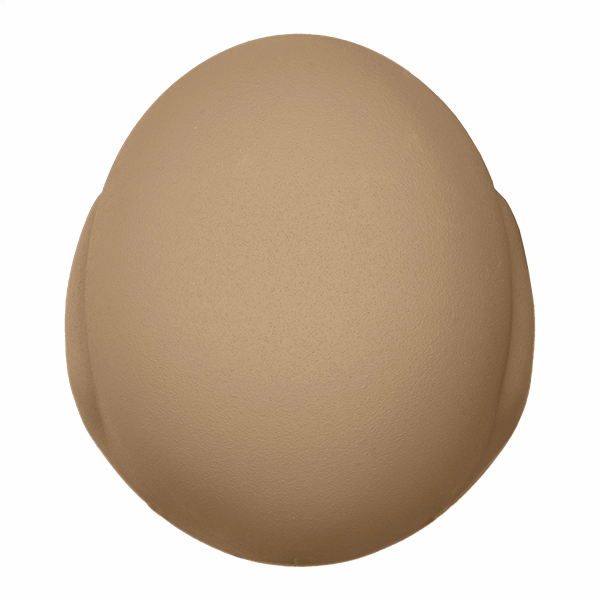

EXTENDED RIFLE-RESISTANT. HIGH PROTECTION ASSAULT HELMET
ArmorSource's AIRE EX is a revolutionary rifle-resistant / small arms Rifle Resistance Helmet designed specifically for SWAT team. front line troops and counter-terrorism units around the globe.
This lightweight and innovative solution incorporates proprietary high-performance ballistic materials in a proven. battletested ACH shape. The AIRE EX is a highly modular ballistic helmet designed and tested to deliver increased levels of protection for today's elite soldier.
FEATURES
Provides a SIGNIFICANT INCREASE IN PERFORMANCE PROTECTION against fragments
DEFEATS SMALL ARMS like NATO M80 (7.62X51) round at 2100 ft/sec (640 m/s)
Approximately the SAME WEIGHT AS THE LEGACY U.S. MILITARY'S ADVANCED COMBAT HELMET (ACH)
Proudly MADE IN THE USA
SYSTEM SNAPSHOT
| Specification | Details |
|---|---|
| Shape/Design | U.S. Army ACH Geometry |
| Shell Construction | Proprietary blend of Aramid and Composite Materials |
| Ballistic Protection | U.S. Army GL-PD-09-04 STD |
| RIFLE RESISTANCE | 7.62x39 LC V50 > 2676 f/s 5.56x45 (M193) V50 > 2986 f/s 7.62X51 M80 NATO round: V0 > 2100 f/s (640 m/s) |
| FRAGMENT PROTECTION | 17 grain V50>2950 f/s (900 m/s) |
| ENVIRONMENTAL / MECHANICAL STANDARD | U.S. Army GL-PD-09-04 STD |
| Certification | From an NIJ certified laboratory |
| Available Head Sizes | X-Small / Small / Medium / Large / X-Large / XX-Large |
| Available Shell Sizes | Small / Medium / Large / X-Large |
| Extreme Testing Conditions | Performs under temperature between 160 F (71C) and -60F (-51C); Performs after 3 hours sea water immersion |
| Configuration | 100% Boltless (Durability Verified) |
| Use | Front Line Troops; SWAT |
Available Colors
Available Cuts

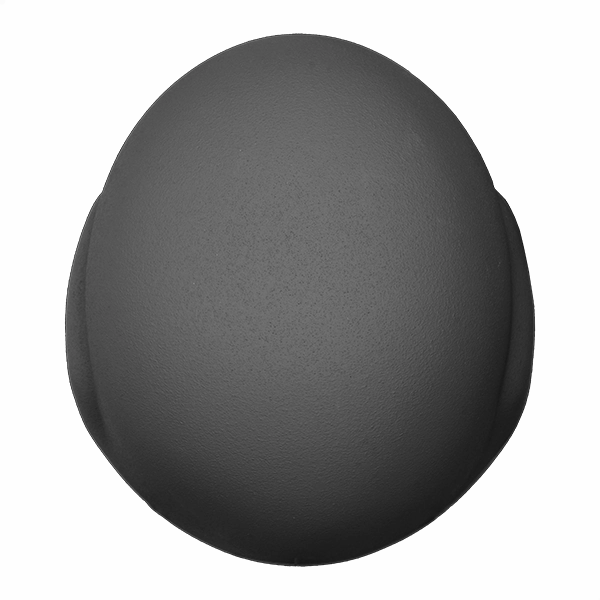

Shell Info
Shell Thickness: 0.3 (0.1) / 8 mm (2.5mm)
Finished Shell Nominal Weight*:
- Medium 0.76 kg (1.7 lbs)
- Large 0.8 kg(1.8 lbs);
- X-Large 0.87 kg (1.9 lbs)
NOMINAL SURFACE AREA* M - 1.037 cm (161 in); L - 1.081 cm (168 in); XL - 1.208 cm (187 in)
NOMINAL AREAL DENSITY 7.2 kg/m (1.58 lbs/ft)
System Info
Finished Helmet Nominal Weight**:
- Medium 1.02 kg (2.2 lbs);
- Large 1.08 kg (2.4 lbs);
- X-Large 1.13 kg (2.5 lbs)
Fully Loaded High-Cut Nominal Weight***:
- Medium 1.11 kg (2.4 lbs);
- Large 1.17 kg(2.6 lbs);
- X-Large 1.21 kg (2.7 lbs)
* Regular-cut shell

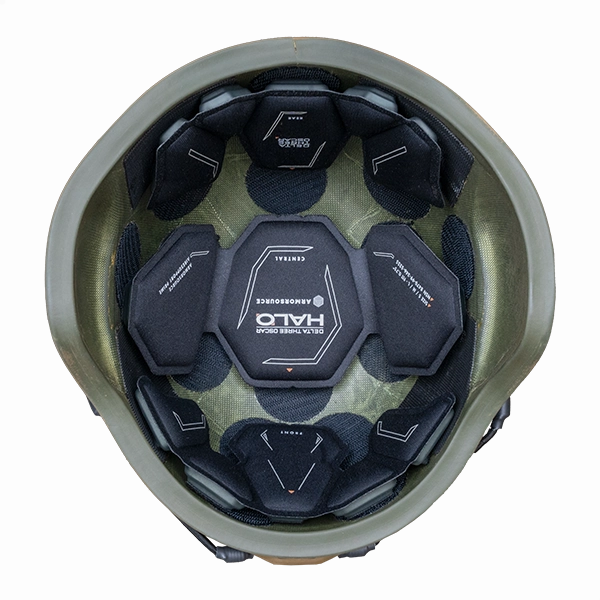

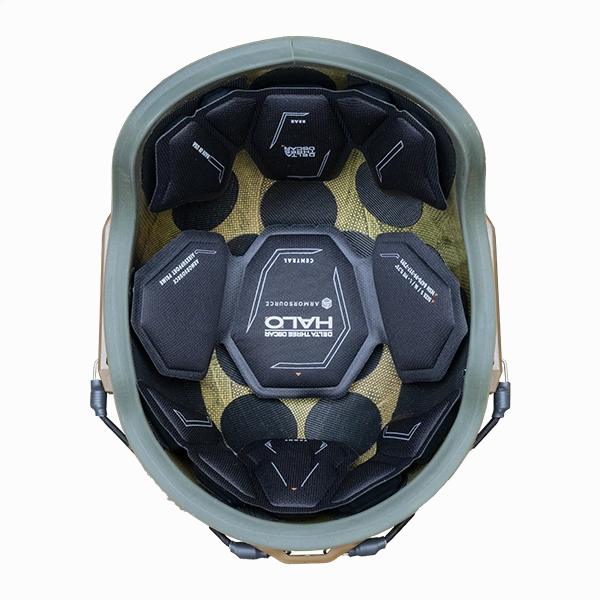

** A Regular-cut helmet installed with retention and suspension systems

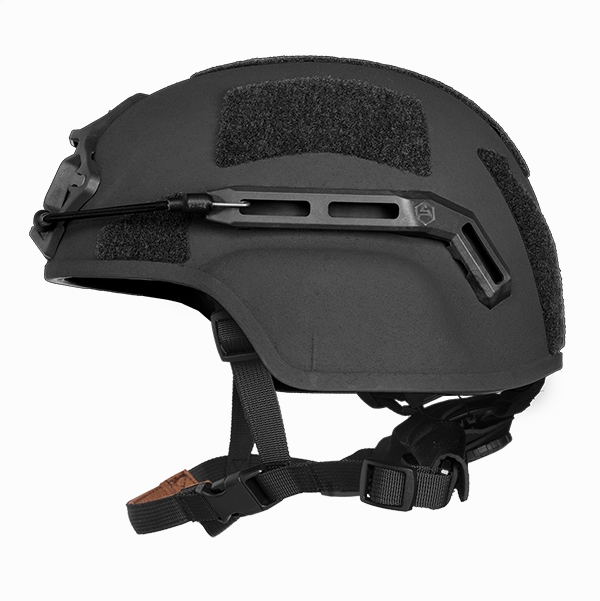

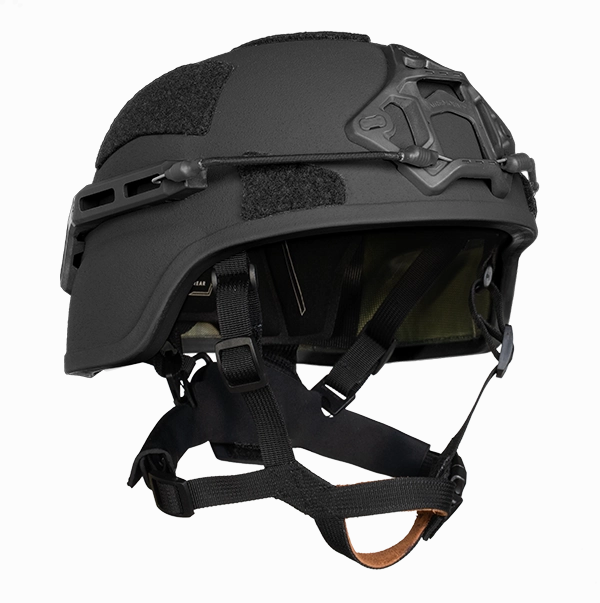

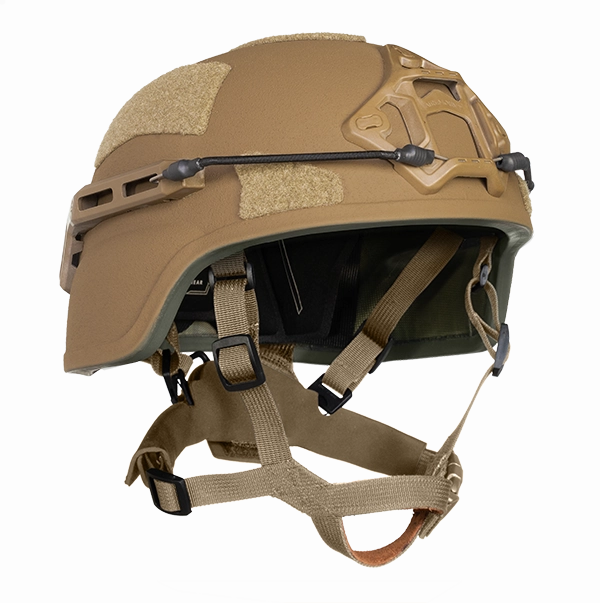

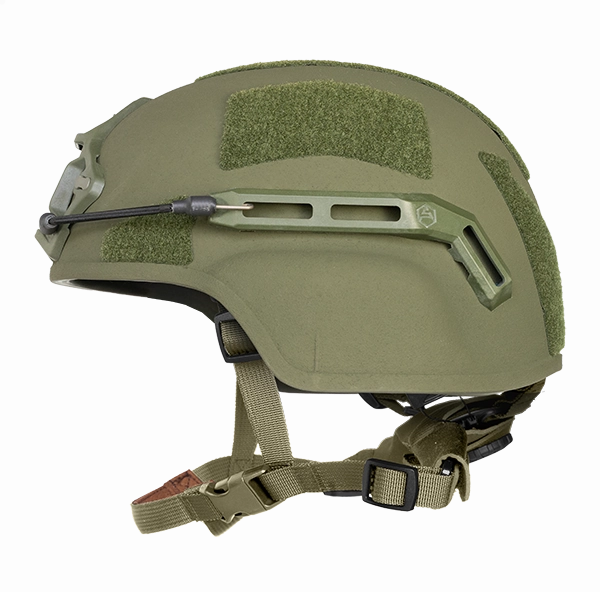

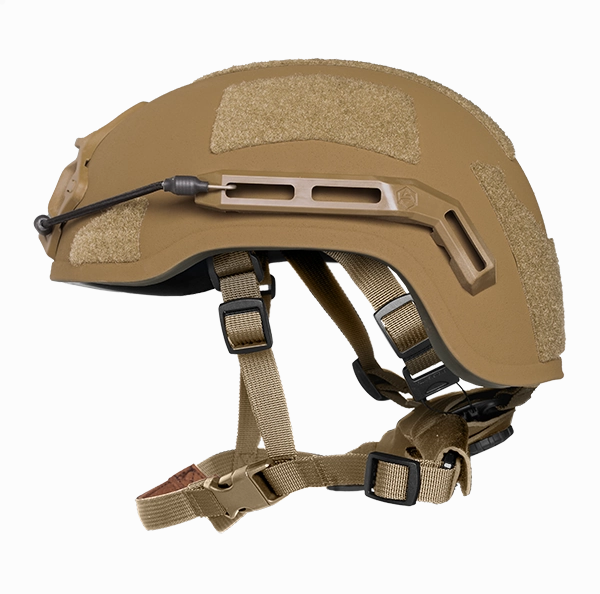

*** Special Command configuration: the complete kit. with ASR side-rails. NVG Shroud and Operational Loop System
System Capabilities Checklist
* In accordance with ArmorSource technical specifications and applicable standards
How to Fit Your Helmet
Getting the right fit is important for performance and comfort. Use a tape measure and caliper to take measurements. The wearer MUST be seated in an upright position for proper fitting. See the illustrations for correct measuring points.
NOTE: If any measurement falls on the dividing line between sizes. select the larger size.
HEAD LENGTH
HEAD WIDTH
CIRCUMFERENCE
Measure completely around head
| HELMET SIZE | HEAD LENGTH | HEAD WIDTH | CIRCUMFERENCE |
|---|---|---|---|
| Small | UP TO 7 / 184 mm | UP TO 6 / 162 mm | UP TO 21 / 538 mm |
| Medium | 7 / 184 mm to 7 / 198 mm | UP TO 6 / 162 mm | 21 / 538 mm to 22 / 573 mm |
| Large | 7 / 198 mm to 8 / 210 mm | UP TO 6 / 162 mm | 22 / 573 mm to 23 / 597 mm |
| Extra-Large | 8 / 210 mm and over | 6 / 162 mm and over | 23 / 597 mm and over |
