(THIS PRODUCT IS MADE TO ORDER WITH A8-12 WEEKLEAD TIME)

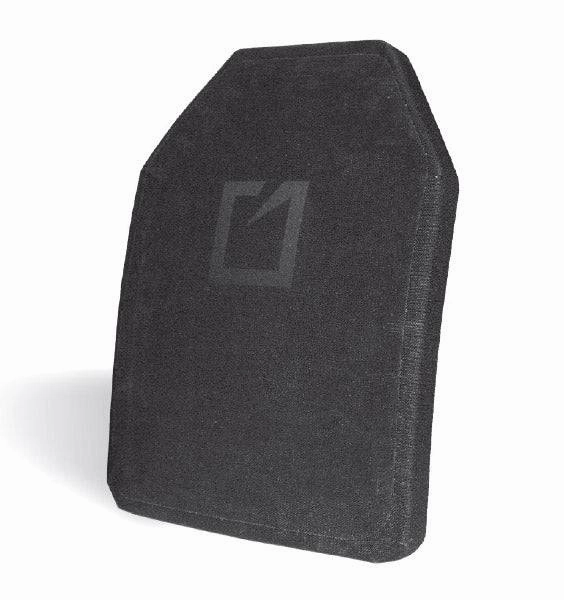

Hesco 800 Series BI 4800LV SAPI Cut LevelIV Stand Alone Multi Curve Torso Plates
Body Armor Plates NIJ Level IV SAPI Cut
HESCO 800 SERIES is designed to perform in fast moving. highly volatile environments requiring the ultimate in protection and maneuvrability
Using next generation materials. 800 SERIES plates are the lightest weight. highest quality plates in their class. Finished with a highly durable wrap and waterproof coating delivering unsurpassed quality in feel and performance..
- Next Gen Spectra Materials And Technology
- Comfort Fitting Multi Curve Designs
- Law Enfrocement Style Shooter Cut And Military Style Sapi Cut
- Highly Durable. Waterproof. PolyurethaneCoated. Cordura Nylon Wrap
- Precision Quality Control
THICKNESS: 0.67 in (17 mm)
SAPICUT - MULTI CURVE - TORSO PLATES
| PART NUMBER | WIDTH x LENGTH | WEIGHT |
| 4800LV-SA-MC-XL | 11.00 x 14.00 in (279 x 356 mm) | 6.5 lb (3.0 kg) |
| 4800LV-SA-MC-L | 10.25 x 13.25 in (260 x 337 mm) | 5.6 lb (2.6 kg) |
| 4800LV-SA-MC-M | 9.50 x 12.50 in (241 x 318 mm) | 4.9 lb (2.2 kg) |
| 4800LV-SA-MC-S | 8.75 x 11.75 in (222 x 298 mm) | 4.2 lb (1.9 kg) |
| 4800LV-SA-MC-XS | 7.25 x 11.50 in (184 x 292 mm) | 3.3 lb (1.5 kg) |
Manufacturing Tolerances:
Thickness dimensions are 1/8 in ( 3 mm). Width and length dimensions are 0.00 to -0.25 in ( 0.00 to -6 mm). All weights are 5%.
Hesco Testing Protocol
NIJ Certification of hard armor requires submission of 10 x 12 test plates which must demonstrate the ability to defeat specific rounds tested to a valid NIJ shot pattern. after exposure to a stringent conditioning protocol to simulate aging and wear. Level III requires six M80 rounds per plate.Level IV requires one AP M2 per plate.
For reduced thickness. the BI 4800LV does not have front face or back face foam layers and therefore does not meet the drop test or backface signature deformation requirements of NIJ Standard0101.06. Otherwise. its ballistic performance is consistent with the BI 4800.
Hesco holds itself to a higher standard by publishing the minimum number of shots that each size plate can be expected to defeat under similar NIJ testing methods. as well as listing many additional threats not addressed under the NIJ Certification process. Those minimum numbers are shown here.
Thread Performance Matrix
| 800 SERIES | 4800LV-SA-MC-XL | 4800LV-SA-MC-L | 4800LV-SA-MC-M | 4800LV-SA-MC-S | 4800LV-SA-MC-XS | |
| Lead Core | 5.56 x 45 mm MI93 Max Velocity 3150 ft/s | 3 | 3 | 3 | 3 | 3 |
| 7.62 x 39 mm - M67 Max Velocity 2390 ft/s | 3 | 3 | 3 | 3 | 3 | |
| 7.62 x 51 mm M80 * Max Velocity 2800 ft/s | 3 | 3 | 3 | 3 | 3 | |
| MILD STEEL CORE | 5.56 x 45 mm - M855/SS109 Max Velocity 3150 ft/s | 3 | 3 | 3 | 3 | 3 |
| 7.62 x 39 mm M43 Max Velocity 2390 ft/s | 3 | 3 | 3 | 3 | 3 | |
| 7.62 x 54R LPS Max Velocity 2850 ft/s | 3 | 3 | 3 | 3 | 3 | |
| ENHANCED PERFORMANCE | 5.56 x 45 mm - M855A1 Max Velocity 3050 ft/s | 3 | 3 | 3 | 3 | 3 |
| 7.62 x 51mm M80A1 Max Velocity 3050 ft/s | 1 | 1 | 1 | 1 | 1 | |
| ARMOR PIERCING CORE | 7.62 x 39 mm - API Max Velocity 2390 ft/s | 3 | 3 | 3 | 3 | 3 |
| 7.62 x 54R B-32 - API Max Velocity 2850 ft/s | 1 | 1 | 1 | 1 | 1 | |
| 7.62 x 51 mm M61 Max Velocity 2830 ft/s (863 m/s) | 1 | 1 | 1 | 1 | 1 | |
| 7.62 x 63 mm AP M2 ** Max Velocity 2900 ft/s | 1 | 1 | 1 | 1 | 1 |
General Information
Advanced ceramic/Spectra design. Water repellant polyurethane coated CORDURA fabric finish. Made in the U.S.A.
Quality Standards
Hesco operates a quality management system certified to ISO 9001:2008.
Approved Certificate Numbers: C2016-01513; BA9000: 2012; AQAP 2110
