(THIS PRODUCT IS MADE TO ORDER WITH A8-12 WEEKLEAD TIME)

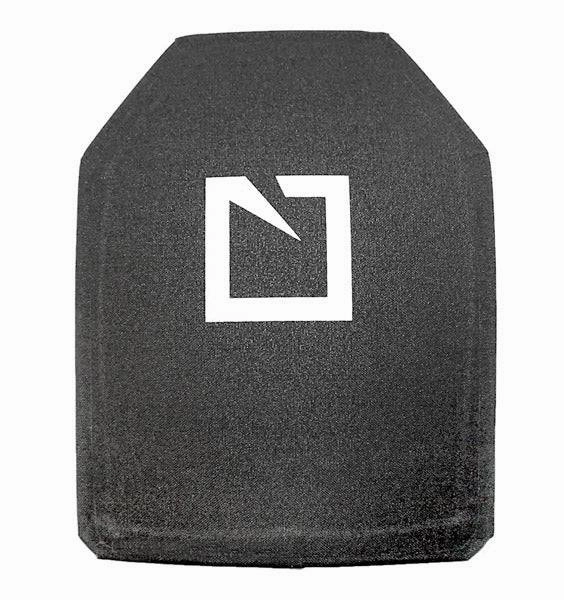

Hesco 200 Series SAPI CutBI P210 Level IIIA Multi Curve - Stand Alone Plates
NIJ Certified Threat Level IIIA Sapi Cut Plates
200 Series plates are designed to be worn where concealability is an asset. featuring models that offer both low visibility and special threat protection.
Single and multi curve designs in shooter. full andSAPI cuts are available depending on model.
200 Series offers specialized ballistic and stab resistant stand alone inserts for use when a low visual signature is required.
Sapi Cut Plates Features
- Advanced Composite Materials
- Cost Effective & Reliable
- Single & Multi Curve Design
- Highly Durable. Waterproof. Polyurethane Coated. Cordura Nylon Wrap
- Precision Quality Control
Sapi Cut Plates Specifications
THICKNESS: 0.27 in (7 mm)
SAPI CUT - MULTICURVE - TORSO PLATES
| PART NUMBER | WIDTH x LENGTH | WEIGHT |
| P210-SA-MC-XL | 11.00 x 14.00 in (279 x 356 mm) | 1.4 lb (0.6 kg) |
| P210-SA-MC-L | 10.25 x 13.25 in (260 x 337 mm) | 1.2 lb (0.5 kg) |
| P210-SA-MC-M | 9.50 x 12.50 in (241 x 318 mm) | 1.0 lb (0.5 kg) |
| P210-SA-MC-S | 8.75 x 11.75 in (222 x 298 mm) | 0.9 lb (0.4 kg) |
| P210-SA-MC-XS | 7.25 x 11.50 in (184 x 292 mm) | 0.7 lb (0.3 kg) |
Manufacturing Tolerances:
Actual nominal sizes are 0.2 inches smaller than listed.
Thickness dimensions are 1/8 in ( 3 mm).Width and length dimensions are 0.13 in (3 mm). All weights are 5%.
Hesco Testing Protocol
NIJ Certification of hard armor requires submission of 10 x 12 test plates which must demonstrate the ability to defeat specific rounds tested to a valid NIJ shot pattern. after exposure to a stringent conditioning protocol to simulate aging and wear. Level IIIA requires six .357 sig (9 mm FMJ in the case of NIJ 0108.01) and six .44 mag per plate.
NIJ's process provides for the inclusion of other size torso plates of identical construction to be included under the Certification without further NIJ testing.
Hesco holds itself to a higher standard by publishing the minimum number of shots that each size plate can be expected to defeat under similar NIJ testing methods. as well as listing many additional threats not addressed under the NIJ Certification process. The minimum number of shots are shown in the Threat Performance Matrix.
Thread Performance Matrix
| 200 SERIES | P210-SA-MC-XL | P210-SA-MC-L | P210-SA-MC-M | P210-SA-MC-S | P210-SA-MC-XS |
| 9 x 19 mm Parabellum | 6 | 6 | 6 | 3 | 3 |
| .45 ACP | 6 | 6 | 6 | 3 | 3 |
| .40 S&W | 6 | 6 | 6 | 3 | 3 |
| FN 5.7 x 28 mm | 6 | 6 | 6 | 3 | 3 |
| .357 Magnum | 6 | 6 | 6 | 3 | 3 |
| .357 SIG | 6 | 6 | 6 | 3 | 3 |
| .44 Magnum | 6 | 6 | 6 | 3 | 3 |
| 7.62 x 25 mm Tokarev | 6 | 6 | 6 | 3 | 3 |
General Information
Advanced UHMWPE design. Buoyant. Multi shot rated on selected threats. Water repellant polyurethane coated CORDURA fabric finish. Made in the U.S.A.
NIJ Standard0101.06
Special threat testing conducted in accordance with NIJ Standard0101.06 (modified).
NIJ Standard0108.01
Tested and verified to meet or exceed ballistic resistance as specified under NIJ Standard0108.01.
Quality Standards
Hesco operates a quality management system certified to ISO 9001:2008.
Approved Certificate Numbers: C2016-01513; BA9000: 2012; AQAP 2110
