(THIS PRODUCT IS MADE TO ORDER WITH A8-12 WEEKLEAD TIME)

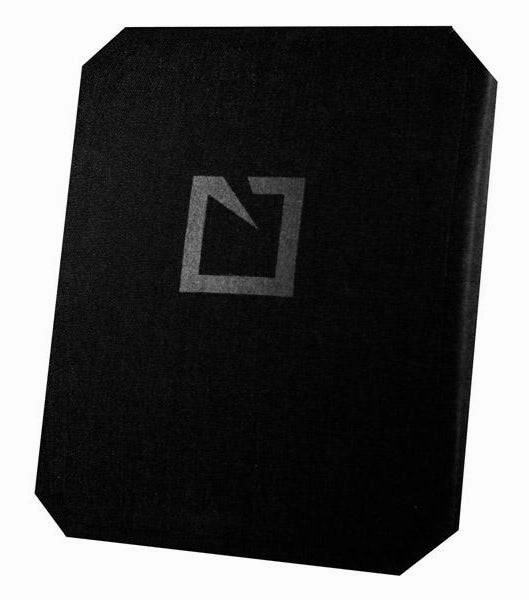

Hesco 200 Series Full CutBI L210 Single CurveSpecial Threat Rifle Stand Alone Plate
Body Armor Plates - Full Cut - Single Curve -Torso Plate
NIJ Standard-0101.06: Special threat testing conducted in accordance with NIJ Standard-0101.06
200 Series plates are designed to be worn where concealability is an asset. featuring models that offer both low visibility and special threat protection.
Single and multi curve designs in shooter. full andSAPI cuts are available depending on model.
200 Series offers specialized ballistic and stab resistant stand alone inserts for use when a low visual signature is required.
Hesco Body Armor Plates Features
- Advanced Composite Materials
- Cost Effective & Reliable
- Single & Multi Curve Design
- Highly Durable. Waterproof. Polyurethane Coated. Cordura Nylon Wrap
- Precision Quality Control
HescoBody Armor Plates Specifications
THICKNESS: 0.59 in (15 mm)
SHOOTER CUT - SINGLE CURVE - TORSO PLATES
| PART NUMBER | WIDTH x LENGTH | WEIGHT |
| L210-FC-SC-L | 10.0 x 12.0 in (254 x 305 mm) | 6.1 lb (2.8 kg) |
| L210-FC-SC-S | 8.0 x 10.0 in (203 x 254 mm) | 4.0 lb (1.8 kg) |
Manufacturing Tolerances:
Thickness dimensions are 1/8 in ( 3 mm). Width and length dimensions are 0.00 to -0.25 in ( 0.00 to -6 mm).
All weights are 5%.
Hesco Testing Protocol
NIJ Certification of hard armor requires submission of 10 x 12 test plates which must demonstrate the ability to defeat specific rounds tested to a valid NIJ shot pattern. after exposure to a stringent conditioning protocol to simulate aging and wear.
NIJ's process provides for the inclusion of other size torso plates of identical construction to be included under the Certification without further NIJ testing.
Hesco holds itself to a higher standard by publishing the minimum number of shots that each size plate can be expected to defeat under similar NIJ testing methods. as well as listing many additional threats not addressed under the NIJ Certification process. The minimum number of shots are shown in the Threat Performance Matrix.
Thread Performance Matrix
| 200 SERIES | L210-FC-SC-L | L210-FC-SC-S | |
| LEAD CORE | 5.56 x 45 mm MI93 Max Velocity 3150 ft/s (960 m/s) | 6 | 3 |
| 7.62 x 39 mm - M67 Max Velocity 2390 ft/s (728 m/s) | 6 | 3 | |
| MILD STEEL CORE | 5.56 x 45 mm - M855/SS109 Max Velocity 3150 ft/s (960 m/s) | 6 | 3 |
| 7.62 x 39 mm M43 Max Velocity 2390 ft/s (728 m/s) | 3 | 3 | |
| ARMOR PIERCING CORE | 7.62 x 39 mm - API Max Velocity 2390 ft/s (728 m/s) | 1 | 1 |
General Information
Ceramic/composite design. Light AP protection including 7.62 x 39 API. Multi shot rated on selected threats. Water repellant polyurethane coated 1000 Denier CORDURA fabric finish. Made in the U.S.A.
NIJ Standard0101.06
Special threat testing conducted in accordance with NIJ Standard0101.06 (modified).
Quality Standards
Hesco operates a quality management system certified to ISO 9001:2008.
Approved Certificate Numbers: C2016-01513; BA9000: 2012; AQAP 2110
