(SOLDINDIVIDUALLY)

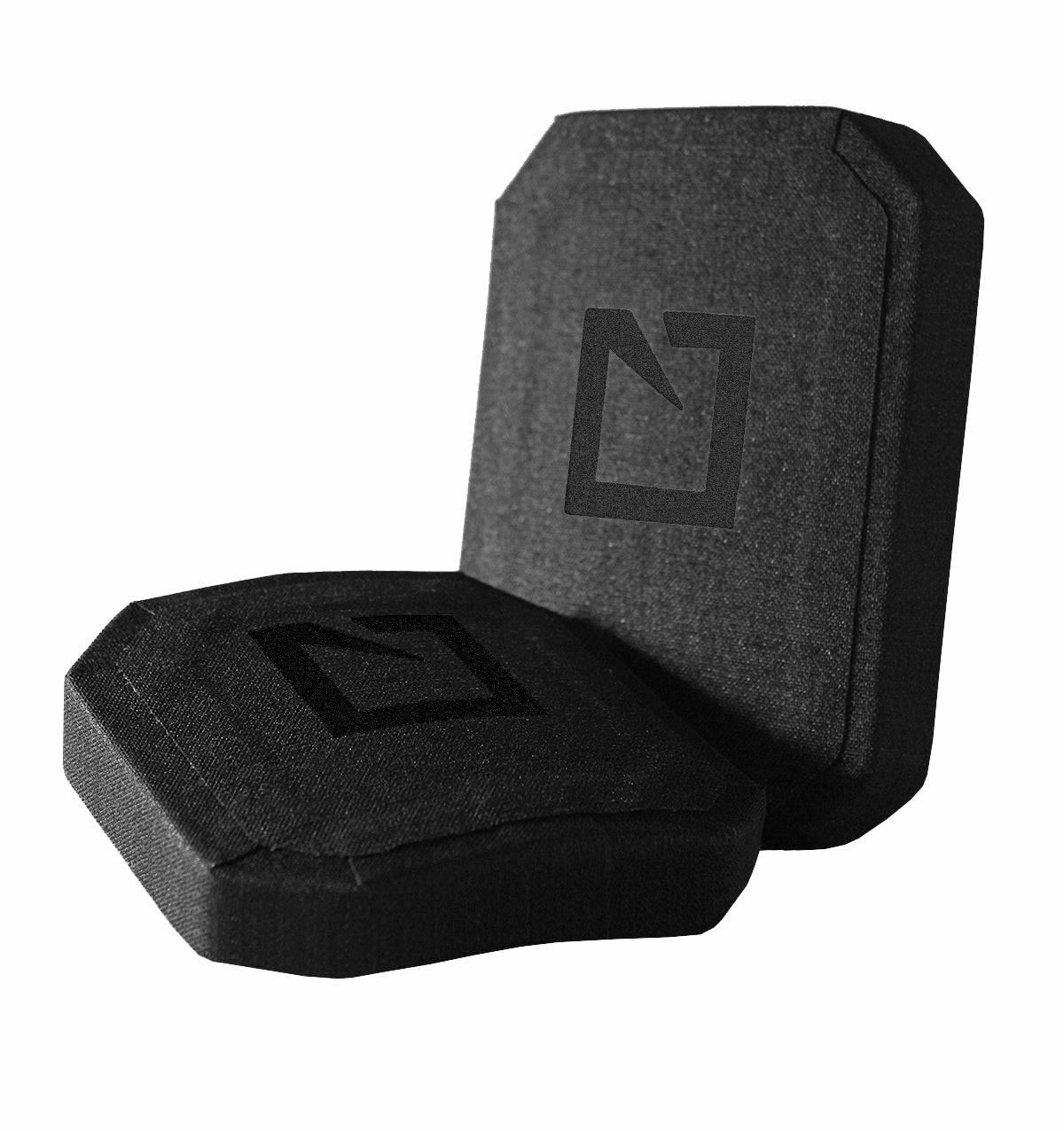

Hesco 100 SeriesSingle CurveSide Plate
NIJ Certified BI 4101 LevelIV Side Plate
HESCO 100 SERIES trauma and side plates areexpertly engineered with intention to be wornalongside HESCO torso plates.
These plates protect vulnerable areas under thearms that may become exposed when drawing.aiming or discharging your weapon.
- Cost Effective With No Compromise
- Advanced Composite Materials
- Single Curve Trauma And Side Designs
- Highly Durable. Waterproof. PolyurethaneCoated. Cordura Nylon Wrap
- Precision Quality Control
THICKNESS: 1.19 in (30 mm)
SINGLE CURVE - SIDE PLATE
| PART NUMBER | WIDTH x LENGTH | WEIGHT |
| 4101-SP-SC-L | 6.0 x 8.0 in (152 x 203 mm) | 2.5 lb (1.1 kg) |
| 4101-SP-SC-S | 6.0 x 6.0 in (152 x 152 mm) | 1.8 lb (0.8 kg) |
Manufacturing Tolerances:
Thickness dimensions are 1/8 in ( 3 mm).
Width and length dimensions are 0.00 to -0.25 in ( 0.00 to -6 mm).
All weights are 5%.
Hesco Testing Protocol
NIJ Certification of hard armor requires submission of 10 x 12 test plates which must demonstrate the ability to defeat specific rounds tested to a valid NIJ shot pattern. after exposure to a stringent conditioning protocol to simulate aging and wear. Level III requires six M80 rounds per plate. Level IV requires one AP M2
per plate.
NIJ's process provides for the inclusion of other size torso plates of identical construction to be included under the Certification without further NIJ testing.
Hesco holds itself to a higher standard by publishing the minimum number of shots that each size plate can be expected to defeat under similar NIJ testing
methods. as well as listing many additional threats not addressed under the NIJ Certification process. The minimum number of shots are shown in the Threat
Performance Matrix.
Thread Performance Matrix
| 100 SERIES | 4101-SP-SC-L | 4101-SP-SC-S | |
| Lead Core | 5.56 x 45 mm MI93 Max Velocity 3150 ft/s (960 m/s) | 1 | 1 |
| 7.62 x 39 mm - M67 Max Velocity 2390 ft/s (728 m/s) | 1 | 1 | |
| 7.62 x 51 mm M80 Max Velocity 2800 ft/s (853 m/s) | 1 | 1 | |
| 7.62 x 63 mm JSP Max Velocity 2780 ft/s (847 m/s) | 1 | 1 | |
| MILD STEEL CORE | 5.56 x 45 mm - M855/SS109 Max Velocity 3150 ft/s (960 m/s) | 1 | 1 |
| 7.62 x 39 mm M43 Max Velocity 2390 ft/s (728 m/s) | 1 | 1 | |
| 7.62 x 54R LPS Max Velocity 2850 ft/s (869 m/s) | 1 | 1 | |
| ARMOR PIERCING CORE | 7.62 x 39 mm - API Max Velocity 2390 ft/s (728 m/s) | 1 | 1 |
| 7.62 x 54R B-32 - API Max Velocity 2850 ft/s (869 m/s) | 1 | 1 | |
| 7.62 x 51 mm M61 Max Velocity 2830 ft/s (863 m/s) | 1 | 1 | |
| 7.62 x 63 mm - AP M2 Max Velocity 2900 ft/s (884 m/s) | 1 | 1 |
General Information
Lightweight ceramic/Spectra design. Water repellant polyurethane coated 1000 Denier CORDURA fabric finish. Made in the U.S.A.
NIJ Standard0101.06
Tested and verified to meet or exceed ballistic resistance as specified under NIJ Standard 0101.06 plus Special Rifle Threats validated.
Quality Standards
Hesco operates a quality management system certified to ISO 9001:2008.
Approved Certificate Numbers: C2016-01513; BA9000: 2012; AQAP 2110
