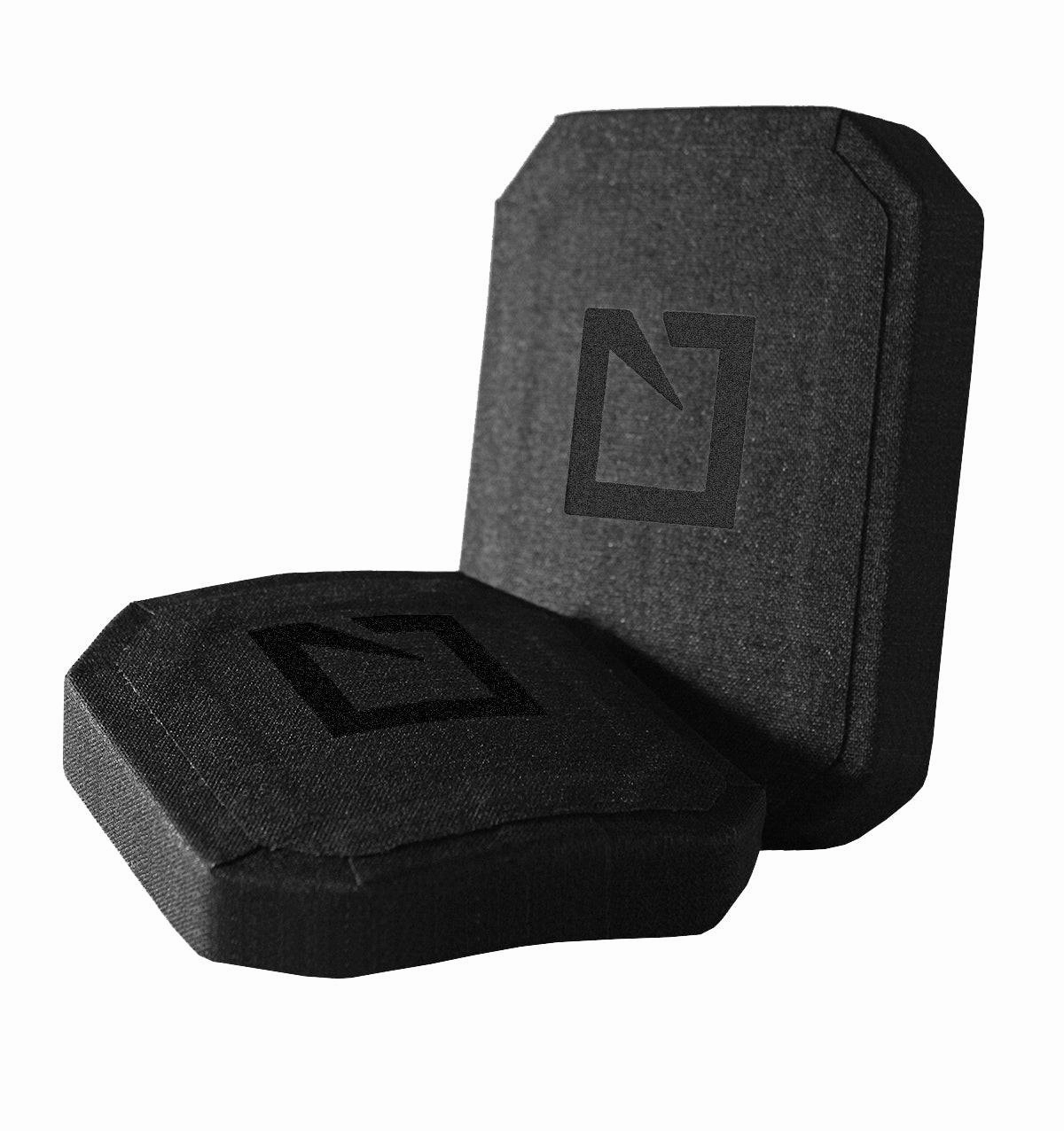

Name: Hesco 100 Series 3110 Level III Side Plate - Single Curve (SOLD INDIVIDUALLY)
SKU: 303053

Product Details ＋

(THIS PRODUCT IS MADE TO ORDER WITH A8-12 WEEKLEAD TIME)

Hesco100 SeriesSide Plate -BI 3110

NIJ Certified Level III Side Plate

HESCO 100 SERIES trauma and side plates areexpertly engineered with intention to be wornalongside HESCO torso plates.

These plates protect vulnerable areas under thearms that may become exposed when drawing.aiming or discharging your weapon.

Cost Effective With No Compromise
Advanced Composite Materials
Single Curve Trauma And Side Designs
Highly Durable. Waterproof. PolyurethaneCoated. Cordura Nylon Wrap
Precision Quality Control

THICKNESS: 1.10 in (28 mm)

SINGLE CURVE - SIDE PLATE

PART NUMBER	WIDTH x LENGTH	WEIGHT
3110-SP-SC-L	6.0 x 8.0 in (152 x 203 mm)	2.5 lb (1.1 kg)
3110-SP-SC-S	6.0 x 6.0 in (152 x 152 mm)	1.8 lb (0.8 kg)

Hesco Testing Protocol

NIJ Certification of hard armor requires submission of 10 x 12 test plates which must demonstrate the ability to defeat specific rounds tested to a valid NIJ shot pattern. after exposure to a stringent conditioning protocol to simulate aging and wear. Level III requires six M80 rounds per plate. Level IV requires one AP M2 per plate.

NIJ's process provides for the inclusion of other size torso plates of identical construction to be included under the Certification without further NIJ testing.

Hesco holds itself to a higher standard by publishing the minimum number of shots that each size plate can be expected to defeat under similar NIJ testing methods. as well as listing many additional threats not addressed under the NIJ Certification process. The minimum number of shots are shown in the Threat Performance Matrix.

Manufacturing Tolerances:

Thickness dimensions are 1/8 in ( 3 mm).
Width and length dimensions are 0.00 to -0.25 in ( 0.00 to -6 mm).
All weights are 5%.

Thread Performance Matrix

100 SERIES		3110-SP-SC-L	3110-SP-SC-S
LEAD CORE	5.56 x 45 mm MI93 Max Velocity 3150 ft/s (960 m/s)	1	1
	7.62 x 39 mm - M67 Max Velocity 2390 ft/s (728 m/s)	1	1
	7.62 x 51 mm M80 Max Velocity 2800 ft/s (853 m/s)	1	1
MILD STEEL CORE	5.56 x 45 mm - M855/SS109 Max Velocity 3150 ft/s (960 m/s)	1	1
	7.62 x 39 mm M43 Max Velocity 2390 ft/s (728 m/s)	1	1
	7.62 x 54R LPS Max Velocity 2850 ft/s (869 m/s)	1	1
ARMOR PIERCING CORE	7.62 x 39 mm - API Max Velocity 2390 ft/s (728 m/s)	1	1

General Information

Ceramic/composite design. Light AP protection including 7.62 x 39 mm API. Water repellant polyurethane coated CORDURA fabric finish. Made in the U.S.A.
