Description
AFFORDABILITY. RELIABILITY. CAPABILITY. TACTICAL BALLISTIC HELMET FOR MILITARY USE.

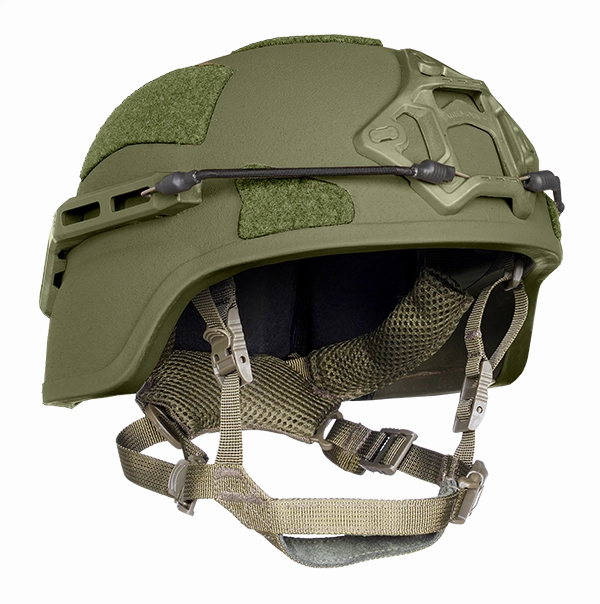

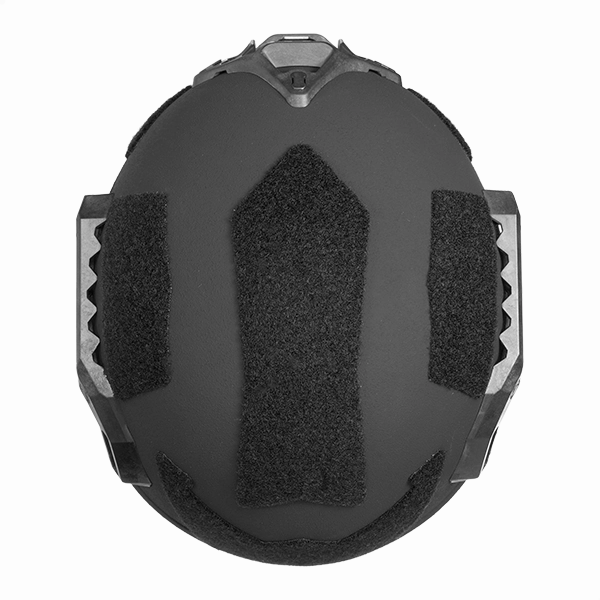

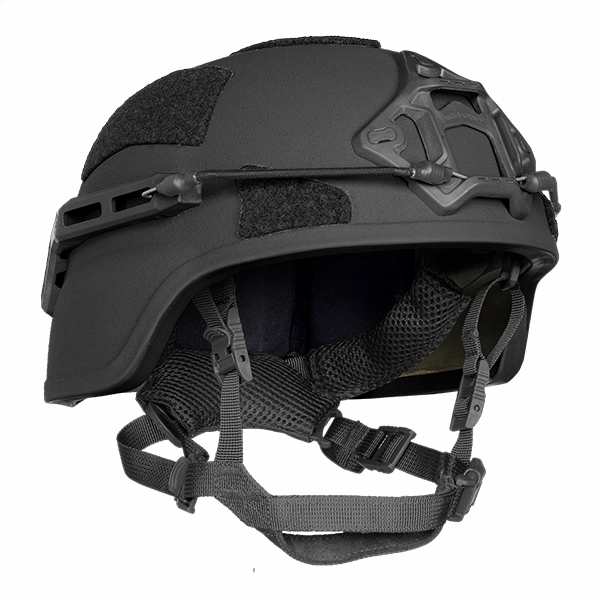

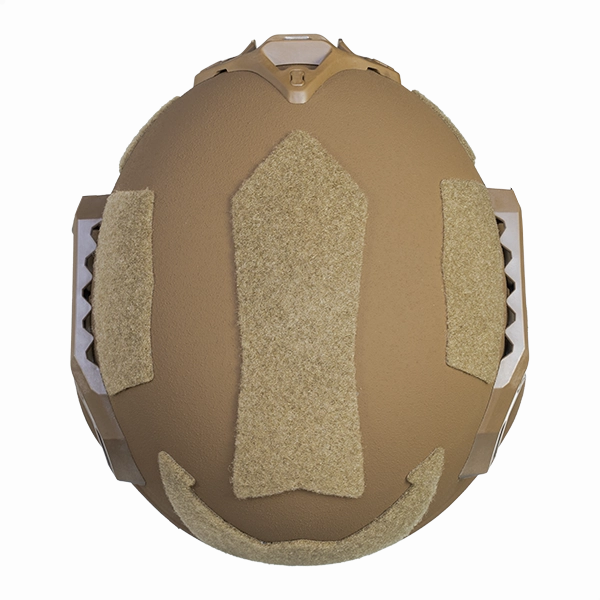

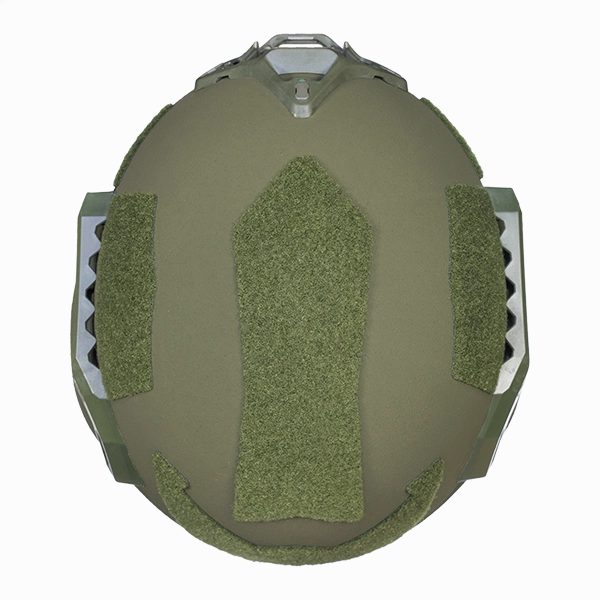

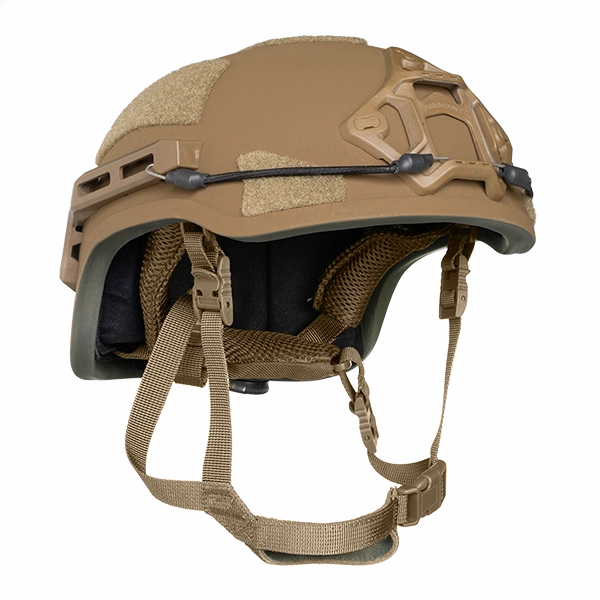

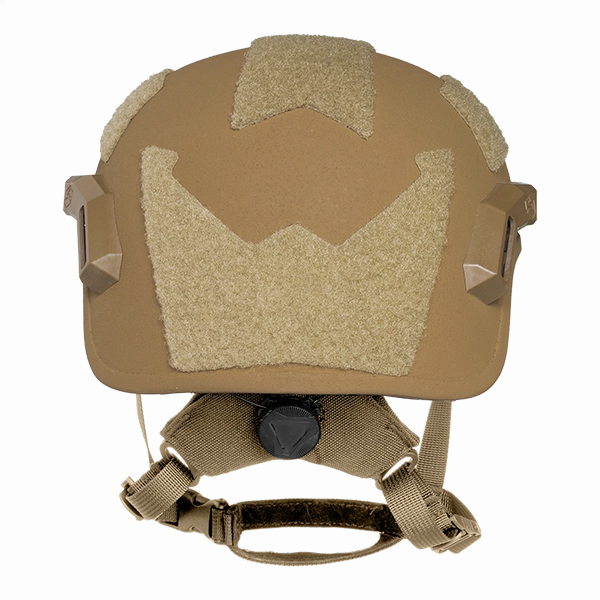

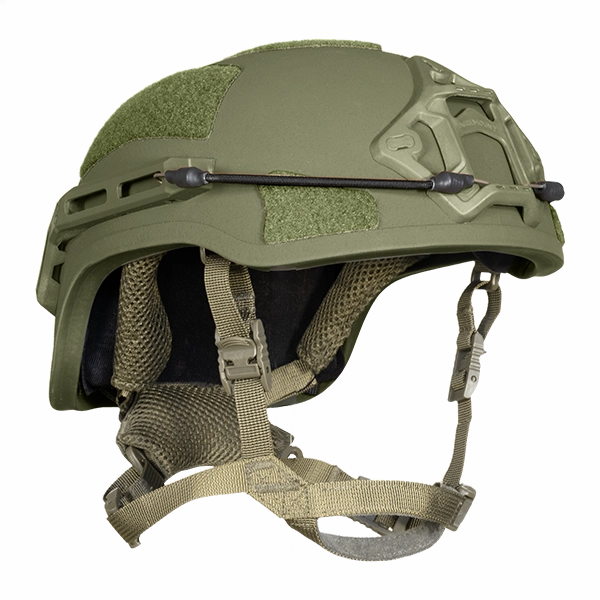

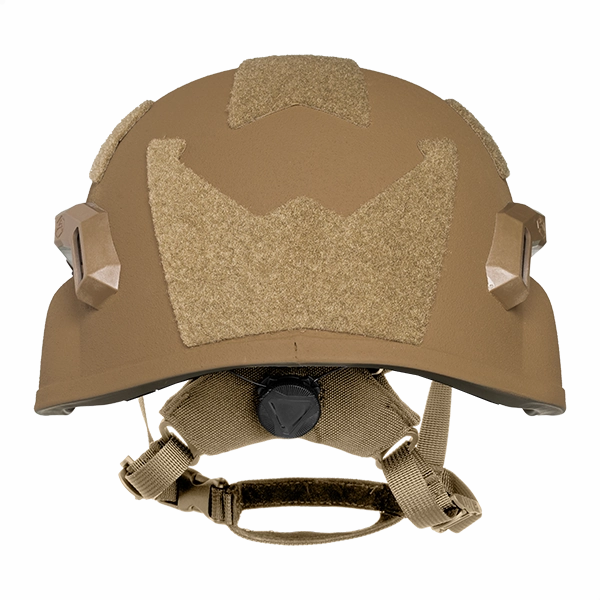

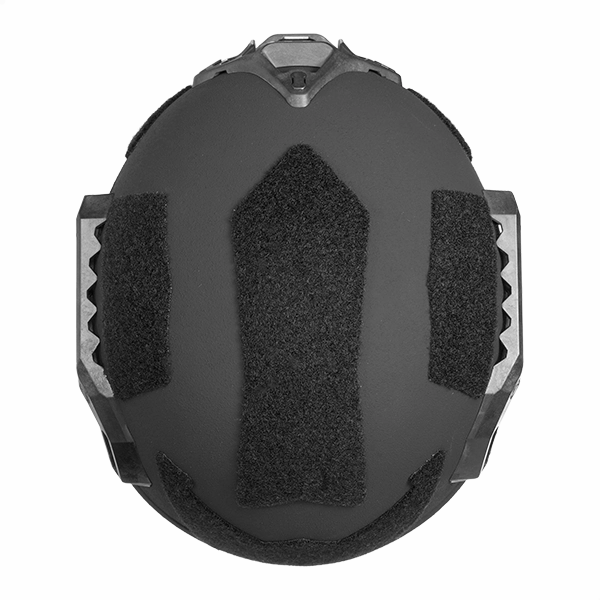

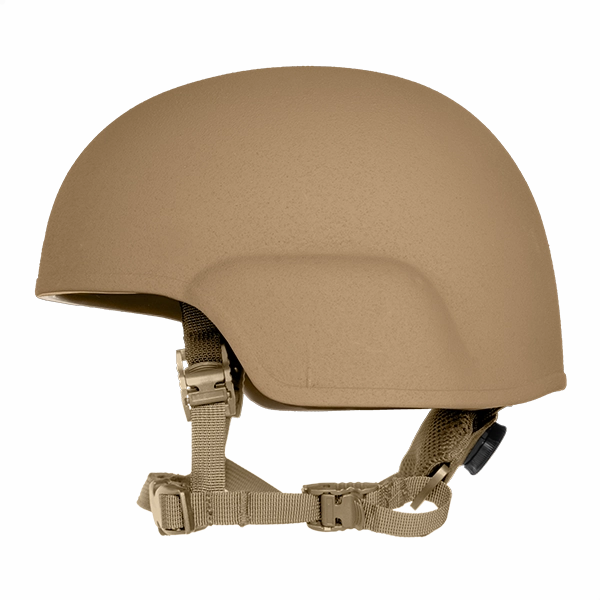

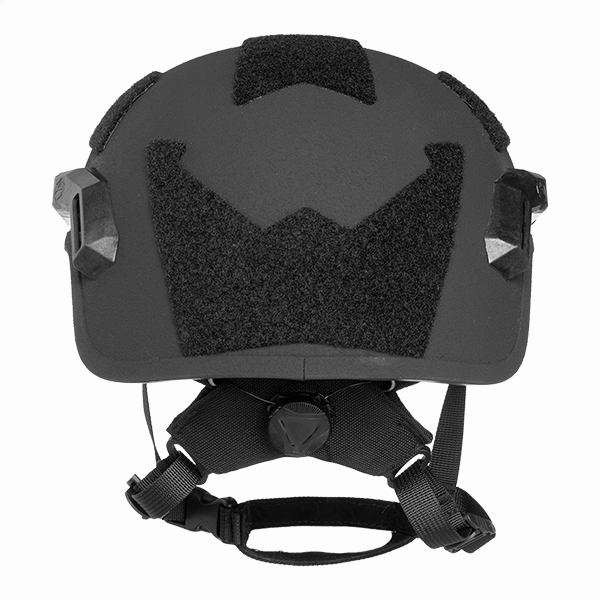

The ArmorSource AS-200 Ballistic Helmet is the most affordable ACH/ MICH Shape NIJ Level IIIA protection helmet on the market today.
Offering proven fragmentation protection capabilities matched by our dedication to trim unwanted weight. the AS-200 is adaptable for use with all ArmorSource accessories. rails and shrouds and is relied on today by the U.S. Military and other military organizations worldwide.
FEATURES
Provides INCREASED PROTECTION AGAINST HANDGUN BULLETS (9mm and .44 Magnum) UNIVERSAL SHAPE used and accepted by most military and law enforcement organizations worldwide
Available in BOLTED AND BOLTLESS versions
Proudly MADE IN THE USA
SYSTEM SNAPSHOT
| Specification | Details |
|---|---|
| Shape/Design | U.S. Army ACH Geometry |
| Shell Construction | Proprietary blend of Aramid and Composite Materials |
| Ballistic Protection | NIJ Level IIIA 0108.01 / 0106.01 |
| Fragment Protection | 17 grain V50 > 2130 f/s (650 m/s). MIL-STD-662F |
| 9mm BFD/Trauma | Up to 1 at NIJ IIIA velocity (average) |
| Certification | From an NIJ certified laboratory |
| Available Head Sizes | X-Small / Small / Medium / Large / X-Large / XX-Large |
| Available Shell Sizes | Small / Medium / Large / X-Large |
| Extreme Testing Conditions | - Operates between 160F (71C) and -60F (-51C) - Performs after 3 hours sea water immersion |
| Configuration | 100% Boltless (Durability Verified) |
| Use | Law Enforcement; Patrol Units |
Available Colors
Available Cuts

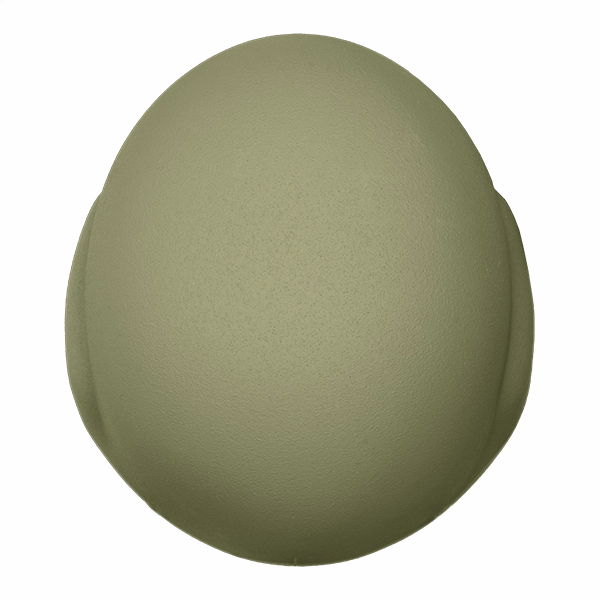

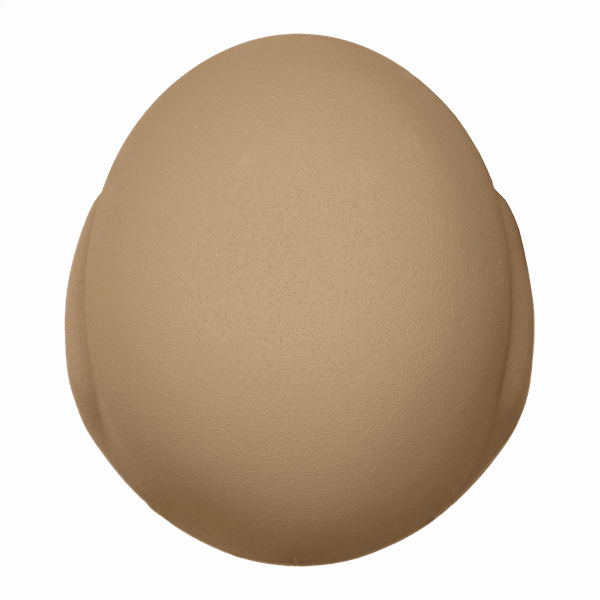

Shell Info
Shell Thickness: 0.4 (0.1) / 10 mm (2.5 mm)
Finished Shell Nominal Weight*:
- Medium 1.22 kg (2.7 lbs)
- Large 1.27 kg (2.8 lbs)
- X-Large 1.37 kg (3 lbs)
System Info
Finished Helmet Nominal Weight**:
- Medium 1.4 kg (3.1 lbs)
- Large 1.45 kg (3.2 lbs)
- X-Large 1.55 kg (3.4 lbs)
Fully Loaded High-Cut Nominal Weight***:
- Medium 1.45 kg (3.2 lbs)
- Large 1.48 kg (3.3 lbs)
- X-Large 1.58 kg (3.5 lbs)
* Regular-cut shell

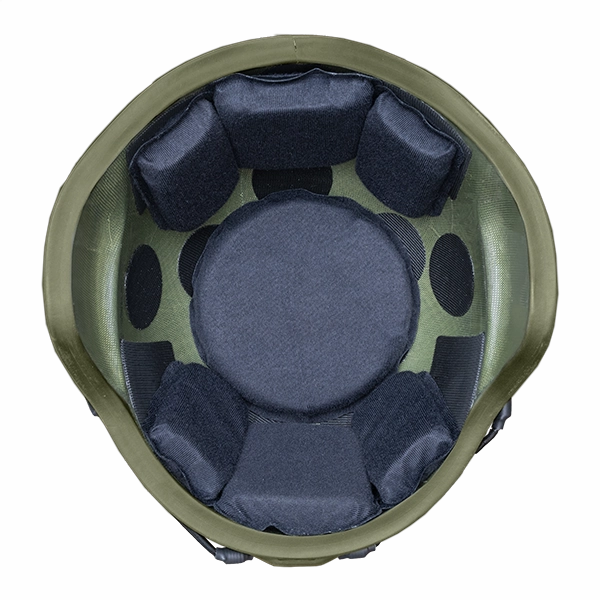

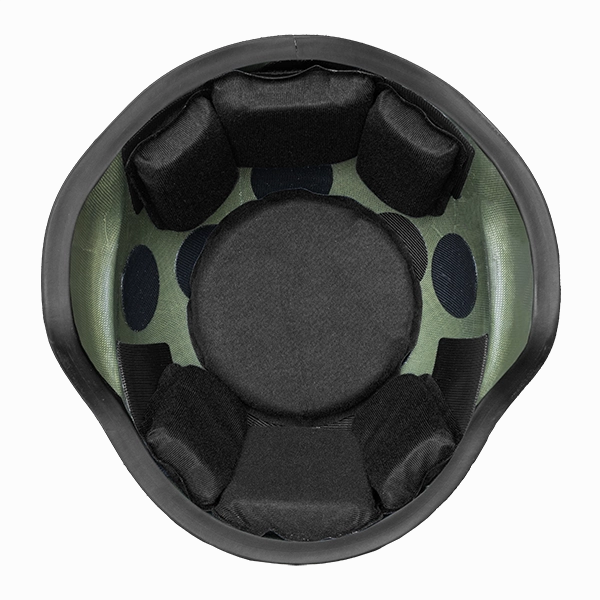

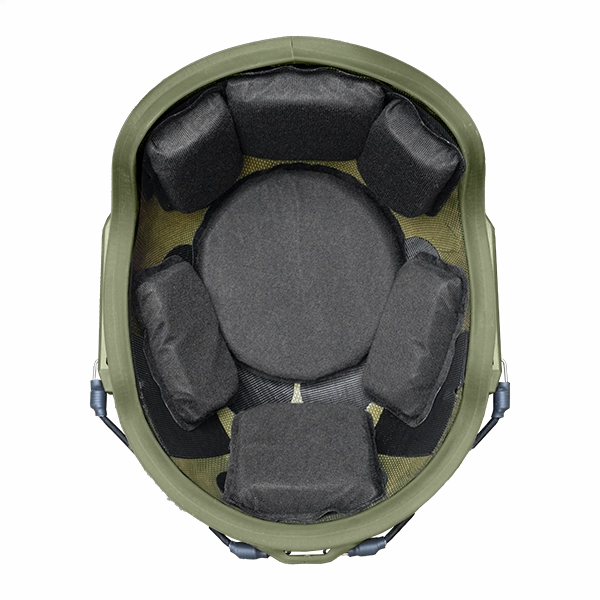

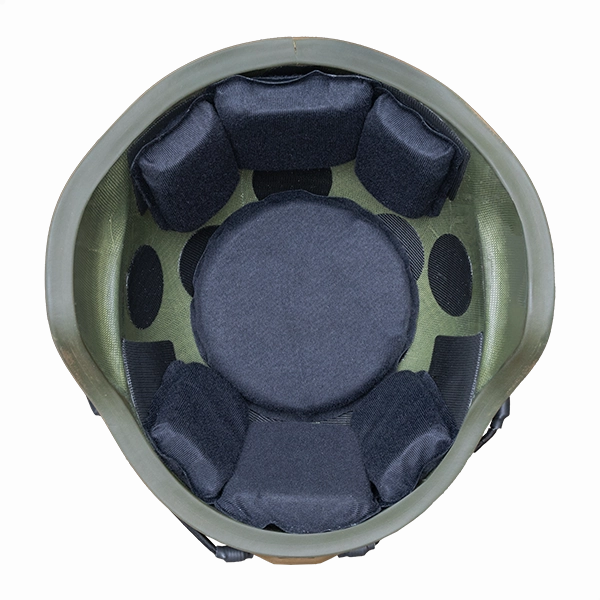

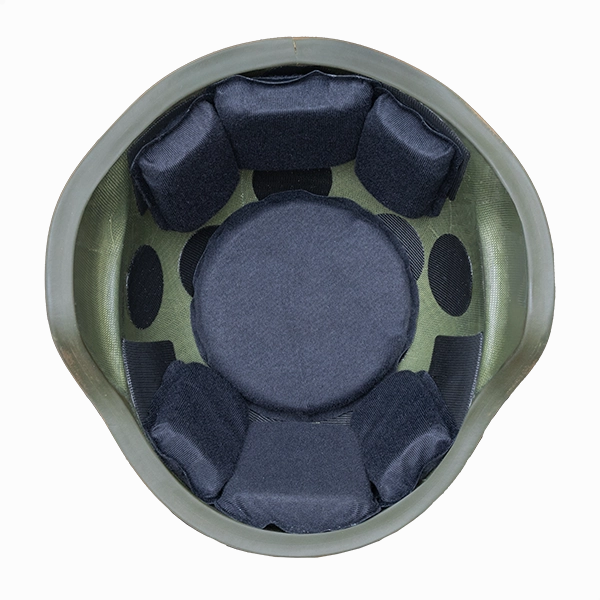

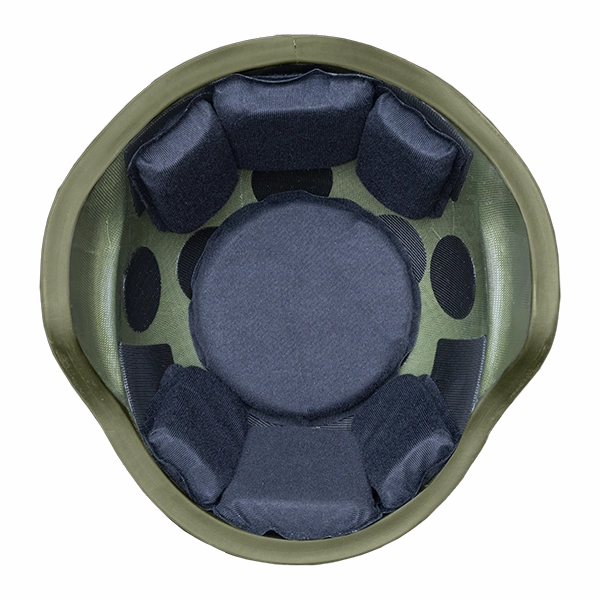

** A Regular-cut helmet installed with retention and suspension systems

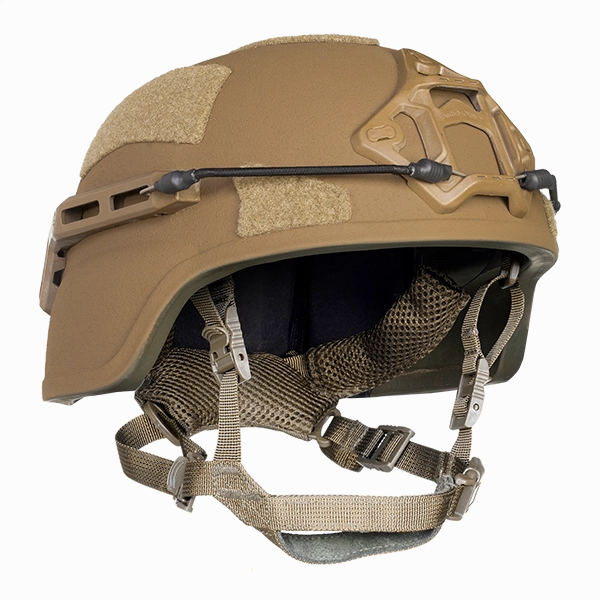

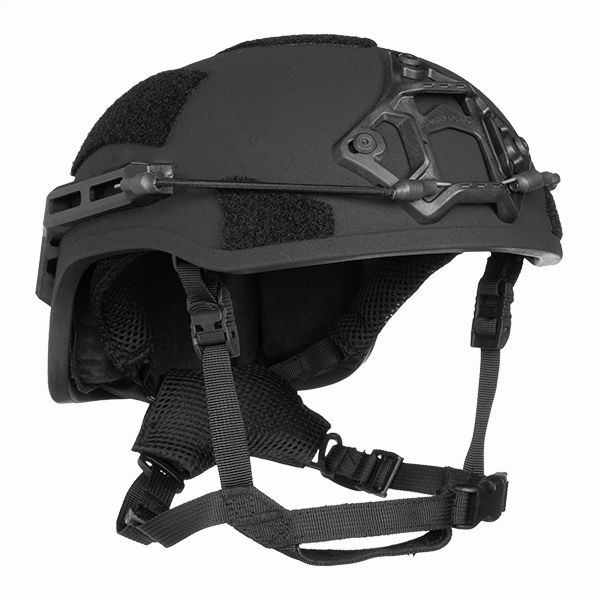

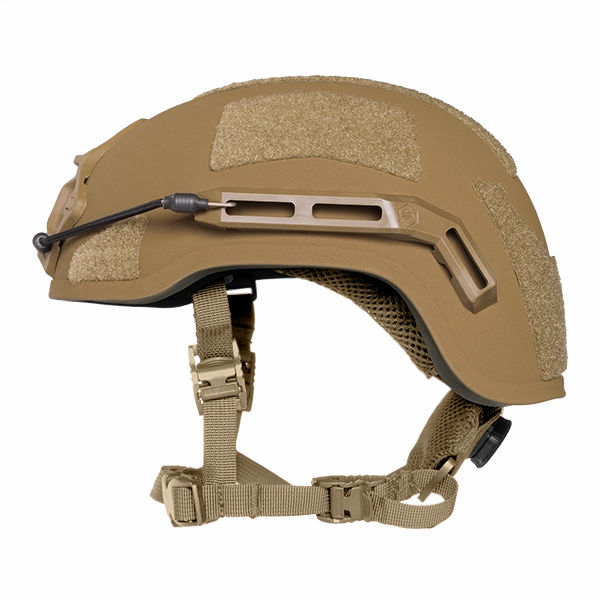

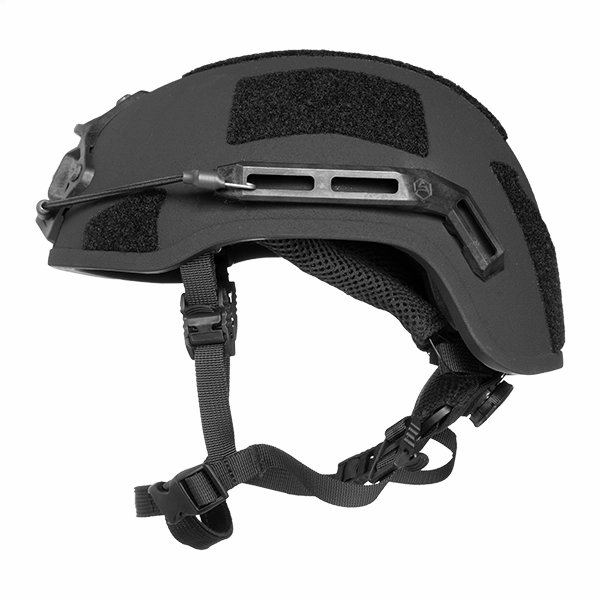

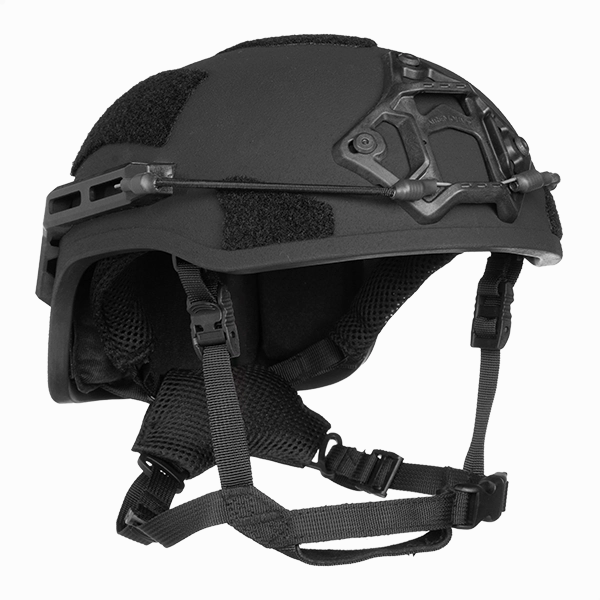

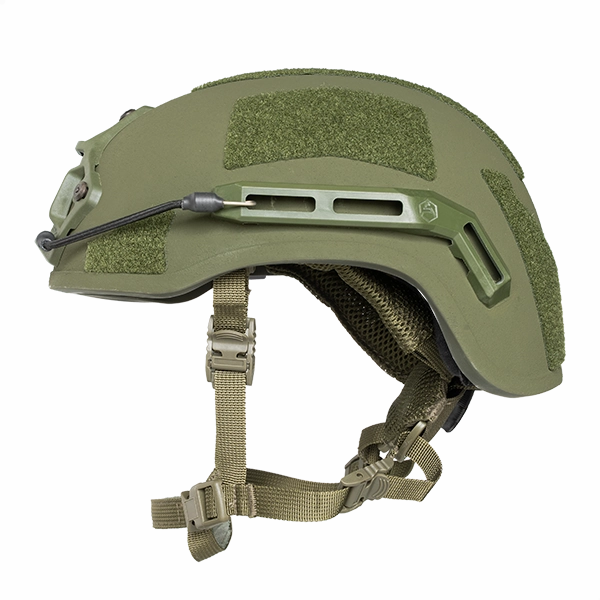

*** Special Command configuration: the complete kit. with ASR side-rails. NVG Shroud and Operational Loop System
System Capabilities Checklist
* In accordance with ArmorSource technical specifications and applicable standards
How to Fit Your Helmet
Getting the right fit is important for performance and comfort. Use a tape measure and caliper to take measurements. The wearer MUST be seated in an upright position for proper fitting. See the illustrations for correct measuring points.
NOTE: If any measurement falls on the dividing line between sizes. select the larger size.
HEAD LENGTH
HEAD WIDTH
CIRCUMFERENCE
Measure completely around head
| HELMET SIZE | HEAD LENGTH | HEAD WIDTH | CIRCUMFERENCE |
|---|---|---|---|
| Small | UP TO 7 / 184 mm | UP TO 6 / 162 mm | UP TO 21 / 538 mm |
| Medium | 7 / 184 mm to 7 / 198 mm | UP TO 6 / 162 mm | 21 / 538 mm to 22 / 573 mm |
| Large | 7 / 198 mm to 8 / 210 mm | UP TO 6 / 162 mm | 22 / 573 mm to 23 / 597 mm |
| Extra-Large | 8 / 210 mm and over | 6 / 162 mm and over | 23 / 597 mm and over |
